AD 2012-24-05

[Federal Register Volume 77, Number 237 (Monday, December 10, 2012)]
[Rules and Regulations]
[Pages 73268-73270]
From the Federal Register Online via the Government Publishing Office [<a href="http://www.gpo.gov">www.gpo.gov</a>]
[FR Doc No: 2012-29489]


-----------------------------------------------------------------------

DEPARTMENT OF TRANSPORTATION

Federal Aviation Administration

14 CFR Part 39

[Docket No. FAA-2012-1117; Directorate Identifier 2012-NE-25-AD;
Amendment 39-17275; AD 2012-24-05]
RIN 2120-AA64


Airworthiness Directives; Rolls-Royce plc Turbofan Engines

AGENCY: Federal Aviation Administration (FAA), DOT.

ACTION: Final rule; request for comments.

-----------------------------------------------------------------------

SUMMARY: We are adopting a new airworthiness directive (AD) for certain

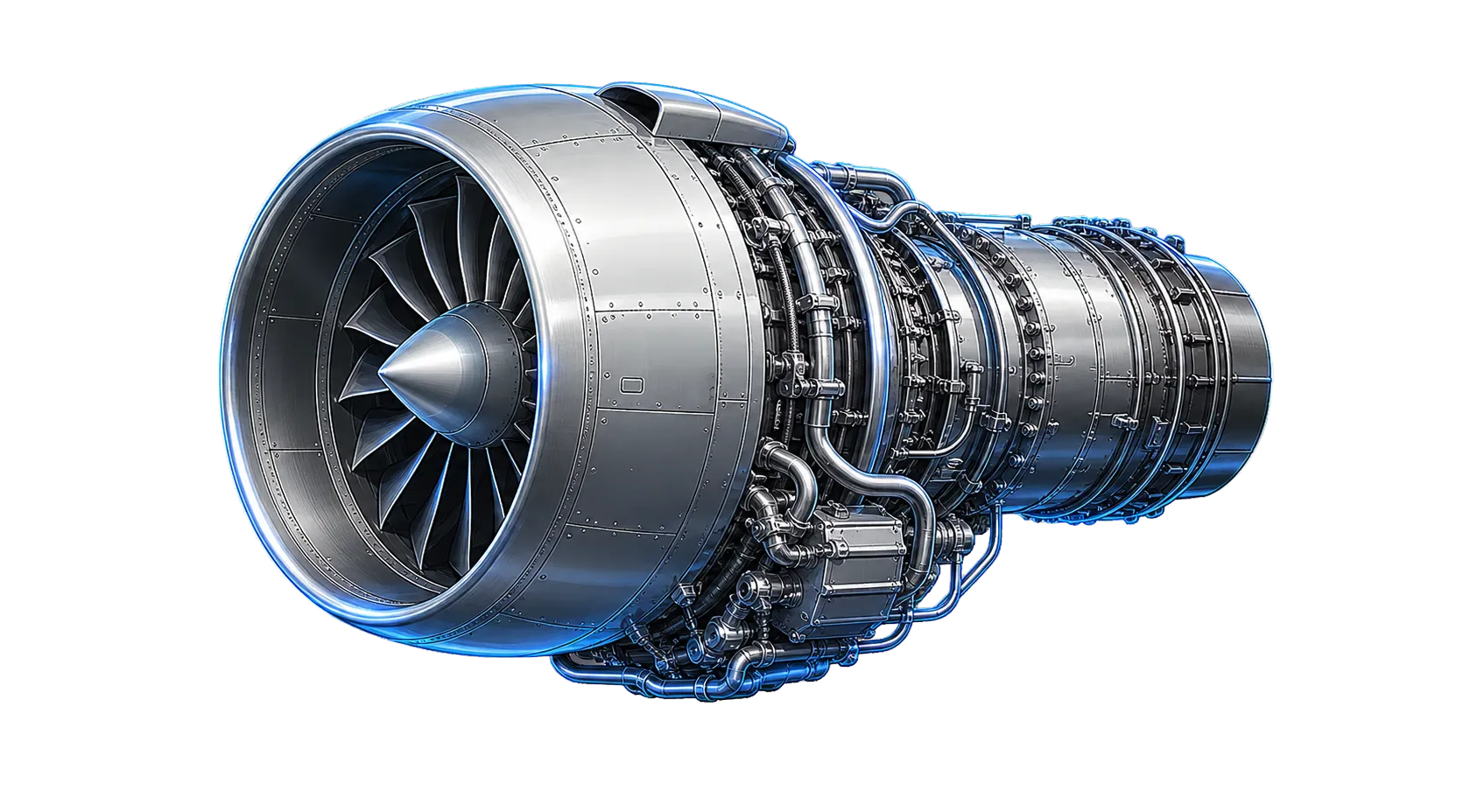

Rolls-Royce plc (RR) RB211-Trent 900 series turbofan engines. This AD
requires inspection of the low pressure turbine (LPT) bearing housing
end cover assembly in certain engines and, if necessary, its
replacement. This AD was prompted by a Trent 900 engine experiencing a
high intermediate pressure vibration fault, along with other
fluctuating engine parameters, while in flight. We are issuing this AD
to prevent fracture of the oil transfer tube, which could result in
uncontained failure of the engine and damage to the airplane.

DATES: This AD becomes effective December 26, 2012.
    We must receive comments on this AD by January 24, 2013.
    The Director of the Federal Register approved the incorporation by
reference of certain publications listed in the AD as of December 26,
2012.

ADDRESSES: You may send comments by any of the following methods:
    <bullet> Federal eRulemaking Portal: Go to <a href="http://www.regulations.gov">http://www.regulations.gov</a> and follow the instructions for sending your
comments electronically.
    <bullet> Mail: U.S. Department of Transportation, 1200 New Jersey
Avenue SE., West Building Ground Floor, Room W12-140, Washington, DC
20590-0001.
    <bullet> Hand Delivery: Deliver to Mail address above between 9
a.m. and 5 p.m., Monday through Friday, except Federal holidays.
    <bullet> Fax: (202) 493-2251.
    For service information identified in this AD, contact Rolls-Royce
plc, Corporate Communications, P.O. Box 31, Derby, England, DE248BJ;
phone: 011-44-1332-242424; fax: 011-44-1332-245418 or email from <a href="http://www.rolls-royce.com/contact/civil_team.jsp">http://www.rolls-royce.com/contact/civil_team.jsp</a>, or download the
publication from <a href="https://www.aeromanager.com">https://www.aeromanager.com</a>. You may view this service
information at the FAA, Engine & Propeller Directorate, 12 New England
Executive Park, Burlington, MA 01803. For information on the
availability of this material at the FAA, call 781-238-7125.

Examining the AD Docket

    You may examine the AD docket on the Internet at <a href="http://www.regulations.gov">http://www.regulations.gov</a>; or in person at the Docket Operations office
between 9 a.m. and 5 p.m., Monday through Friday, except Federal
holidays. The AD docket contains this AD, the regulatory evaluation,
any comments received, and other information. The street address for
the Docket Operations office (phone: (800) 647-5527) is the same as the
Mail address provided in the ADDRESSES section. Comments will be
available in the AD docket shortly after receipt.

FOR FURTHER INFORMATION CONTACT: Alan Strom, Aerospace Engineer, Engine
Certification Office, FAA, Engine & Propeller Directorate, 12 New
England Executive Park, Burlington, MA 01803; phone: 781-238-7143; fax:
781-238-7199; email: <a href="/cdn-cgi/l/email-protection#8feee3eee1a1fcfbfde0e2cfe9eeeea1e8e0f9"><span class="__cf_email__" data-cfemail="cfaea3aea1e1bcbbbda0a28fa9aeaee1a8a0b9">[email&#160;protected]</span></a>.

SUPPLEMENTARY INFORMATION:

Discussion

    The European Aviation Safety Agency (EASA), which is the Technical
Agent for the Member States of the European Community, has issued EASA
Airworthiness Directive AD No. 2012-0145, dated August 6, 2012
(referred to after this as ``the MCAI''), to correct an unsafe
condition for the specified products. The MCAI states:

    During a revenue service flight, a Trent 900 engine experienced
a high Intermediate Pressure (IP/N2) vibration fault along with
several other fluctuating engine parameters, including Low Pressure
(LP/N1) faults. The flight crew decided to throttle back the engine
to idle and performed an air turn back. The other engines continued
to operate normally and an uneventful landing was made.
    The results of an initial investigation revealed that the LP
system was seized. Removal of the Low Pressure Turbine (LPT) bearing
housing end cover revealed that the oil transfer tube assembly had
fractured because the spherical seat between the oil transfer tube
and the end cover was missing (not installed).
    This non-conformity caused the fracture of the oil transfer
tube, leading to reduced oil flow and subsequent damage to the LP
and IP bearings. Rolls-Royce has identified that other Trent 900
engines could potentially be affected.

    The in-service event engine was assembled at the factory by RR.
After the in-service event, RR inspected all LPT bearing housing end
cover assemblies

[[Page 73269]]

they had assembled and found one other assembly with a missing
spherical seat. RR estimates that up to 200 LPT bearing housing end
cover assemblies assembled using this procedure may have been built
without the spherical seat. We are issuing this AD to prevent fracture
of the oil transfer tube, which could result in uncontained failure of
the engine and damage to the airplane. You may obtain further
information by examining the MCAI in the AD docket.

Relevant Service Information

    Rolls-Royce has issued Alert Non-Modification Service Bulletin
Alert (NMSB) RB.211-72-AH051, dated August 3, 2012, or Revision 1,
dated September 11, 2012, and NMSB RB.211-72-H056, dated August 3,
2012, or Revision 1, dated September 11, 2012. The actions described in
this service information are intended to correct the unsafe condition
identified in the MCAI.

FAA's Determination and Requirements of This AD

    This product has been approved by the United Kingdom and is
approved for operation in the United States. Pursuant to our bilateral
agreement with the European Community, EASA has notified us of the
unsafe condition described in the MCAI and service information
referenced above. We are issuing this AD because we evaluated all
information provided by EASA and determined the unsafe condition exists
and is likely to exist or develop on other products of the same type
design.

FAA's Determination of the Effective Date

    An unsafe condition exists that requires the immediate adoption of
this AD. The FAA has found that notice and comment prior to adoption of
this rule is unnecessary because no engines are used on U.S. registered
airplanes. Therefore, we find that good cause exists for making this
amendment effective in less than 30 days.

Comments Invited

    This AD is a final rule that involves requirements affecting flight
safety, and we did not precede it by notice and opportunity for public
comment. We invite you to send any written relevant data, views, or
arguments about this AD. Send your comments to an address listed under
the ADDRESSES section. Include ``Docket No. FAA-2012-1117; Directorate
Identifier 2012-NE-25-AD'' at the beginning of your comments. We
specifically invite comments on the overall regulatory, economic,
environmental, and energy aspects of this AD. We will consider all
comments received by the closing date and may amend this AD because of
those comments.
    We will post all comments we receive, without change, to <a href="http://www.regulations.gov">http://www.regulations.gov</a>, including any personal information you provide. We
will also post a report summarizing each substantive verbal contact
with FAA personnel concerning this AD. Using the search function of the
Web site, anyone can find and read the comments in any of our dockets,
including, if provided, the name of the individual who sent the comment
(or signed the comment on behalf of an association, business, labor
union, etc.). You may review the DOT's complete Privacy Act Statement
in the Federal Register published on April 11, 2000 (65 FR 19477-78).

Authority for This Rulemaking

    Title 49 of the United States Code specifies the FAA's authority to
issue rules on aviation safety. Subtitle I, section 106, describes the
authority of the FAA Administrator. ``Subtitle VII: Aviation
Programs,'' describes in more detail the scope of the Agency's
authority.
    We are issuing this rulemaking under the authority described in
``Subtitle VII, Part A, Subpart III, Section 44701: General
requirements.'' Under that section, Congress charges the FAA with
promoting safe flight of civil aircraft in air commerce by prescribing
regulations for practices, methods, and procedures the Administrator
finds necessary for safety in air commerce. This regulation is within
the scope of that authority because it addresses an unsafe condition
that is likely to exist or develop on products identified in this
rulemaking action.

Regulatory Findings

    We determined that this AD will not have federalism implications
under Executive Order 13132. This AD will not have a substantial direct
effect on the States, on the relationship between the national
government and the States, or on the distribution of power and
responsibilities among the various levels of government.
    For the reasons discussed above, I certify this AD:
    1. Is not a ``significant regulatory action'' under Executive Order
12866;
    2. Is not a ``significant rule'' under the DOT Regulatory Policies
and Procedures (44 FR 11034, February 26, 1979); and
    3. Will not have a significant economic impact, positive or
negative, on a substantial number of small entities under the criteria
of the Regulatory Flexibility Act.
    We prepared a regulatory evaluation of the estimated costs to
comply with this AD and placed it in the AD docket.

List of Subjects in 14 CFR Part 39

    Air transportation, Aircraft, Aviation safety, Incorporation by
reference, Safety.

Adoption of the Amendment

    Accordingly, under the authority delegated to me by the
Administrator, the FAA amends 14 CFR part 39 as follows:

PART 39--AIRWORTHINESS DIRECTIVES

0
1. The authority citation for part 39 continues to read as follows:

    Authority:  49 U.S.C. 106(g), 40113, 44701.


Sec.  39.13  [Amended]

0
2. The FAA amends Sec.  39.13 by adding the following new AD:

2012-24-05 Rolls-Royce plc: Amendment 39-17275; Docket No. FAA-2012-
1117; Directorate Identifier 2012-NE-25-AD.

(a) Effective Date

    This airworthiness directive (AD) becomes effective December 26,
2012.

(b) Affected ADs

    None.

(c) Applicability

    This AD applies to Rolls-Royce plc (RR) RB211-Trent 970-84 and
972-84 series turbofan engines, all serial numbers.

(d) Reason

    This AD was prompted by a Trent 900 engine experiencing a high
intermediate pressure vibration fault, along with other fluctuating
engine parameters, while in flight. We are issuing this AD to
prevent fracture of the oil transfer tube, which could result in
uncontained failure of the engine and damage to the airplane.

(e) Actions and Compliance

    Before further flight, unless already done, do the following:
    (1) Use paragraph 1.A. of RR Alert Non-Modification Service
Bulletin (NMSB) RB.211-72-AH051, dated August 3, 2012, or Revision
1, dated September 11, 2012, and RR NMSB RB.211-72-H056, dated
August 3, 2012, or Revision 1, dated September 11, 2012, to
determine which engine serial numbers to inspect.
    (2) Inspect the LPT bearing housing end cover assembly for the
presence of a spherical seat, P/N CU38971. For guidance on
performing the inspection, see paragraphs 3.A.(5) through 3.A.(8) of
the SBs listed in paragraph (e)(1) of this AD.
    (3) If, during the inspection required by paragraph (e)(2) of
this AD, you find that spherical seat, P/N CU38971, is missing,
replace the LPT bearing housing end cover assembly, P/N FW22780,
with a part eligible for installation.

[[Page 73270]]

(f) Installation Prohibition

    After the effective date of this AD:
    (1) Do not approve for return to service any airplane with an
engine, affected by this AD, installed, unless the engine has passed
the inspection required by paragraph (e)(2) of this AD.
    (2) Do not install an LPT bearing housing end cover assembly, P/
N FW22780, onto any engine required to be inspected by this AD,
unless the LPT bearing housing end cover assembly was inspected as
required by this AD.

(g) Credit for Previous Actions

    If you accomplished the actions required by paragraph (e) of
this AD before the effective date of this AD using RR Technical
Variance (TV) 125436, issue 2, dated July 27, 2012, you met the
requirements of paragraph (e) of this AD.

(h) Alternative Methods of Compliance (AMOCs)

    The Manager, Engine Certification Office, FAA, may approve AMOCs
to this AD. Use the procedures found in 14 CFR 39.19 to make your
request.

(i) Related Information

    (1) For more information about this AD, contact Alan Strom,
Aerospace Engineer, Engine Certification Office, FAA, Engine &
Propeller Directorate, 12 New England Executive Park, Burlington, MA
01803; phone: 781-238-7143; fax: 781-238-7199; email:
<a href="/cdn-cgi/l/email-protection#63020f020d4d1017110c0e230502024d040c15"><span class="__cf_email__" data-cfemail="98f9f4f9f6b6ebeceaf7f5d8fef9f9b6fff7ee">[email&#160;protected]</span></a>.
    (2) Refer to European Aviation Safety Agency Airworthiness
Directive 2012-0145, dated August 6, 2012, for related information.

(j) Material Incorporated by Reference

    (1) The Director of the Federal Register approved the
incorporation by reference (IBR) of the following service
information under 5 U.S.C. 552(a) and 1 CFR part 51.
    (2) You must use the following service information to do the
actions required by this AD, unless the AD specifies otherwise:
    (i) Rolls-Royce (RR) Alert Non-Modification Service Bulletin
(NMSB) RB.211-72-AH051, dated August 3, 2012.
    (ii) RR Alert NMSB RB.211-72-AH051, Revision 1, dated September
11, 2012.
    (iii) RR NMSB RB.211-72-H056, dated August 3, 2012.
    (iv) RR NMSB RB.211-72-H056, Revision 1, dated September 11,
2012.
    (3) For service information identified in this AD, contact
Rolls-Royce plc, Corporate Communications, P.O. Box 31, Derby,
England, DE248BJ; phone: 011-44-1332-242424; fax: 011-44-1332-
245418, email: <a href="http://www.rolls-royce.com/contact/civil_team.jsp">http://www.rolls-royce.com/contact/civil_team.jsp</a>,
or download the publication from <a href="https://www.aeromanager.com">https://www.aeromanager.com</a>.
    (4) You may view this service information at the FAA, Engine &
Propeller Directorate, 12 New England Executive Park, Burlington,
MA. For information on the availability of this material at the FAA,
call 781-238-7125.
    (5) You may view this service information at the National
Archives and Records Administration (NARA). For information on the
availability of this material at NARA, call 202-741-6030, or go to:
<a href="http://www.archives.gov/federal-register/cfr/ibr-locations.html">http://www.archives.gov/federal-register/cfr/ibr-locations.html</a>.

    Issued in Burlington, Massachusetts, on November 26, 2012.
Colleen M. D'Alessandro,
Assistant Manager, Engine & Propeller Directorate, Aircraft
Certification Service.
[FR Doc. 2012-29489 Filed 12-7-12; 8:45 am]
BILLING CODE 4910-13-P
